tungsten wolfram electrodes for Welding

Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Min. Order:	1 Piece/Pieces
Delivery Time:	10 Days

Contact Now

Basic Info

Min 99.95% Purity: Melting Point 3410℃

Size: Polished Pure Tungsten Bar

Additional Info

Packaging: wooden case

Productivity: 1ton/month

Brand: SYMT

Transportation: Ocean,Land,Air

Place of Origin: Shaanxi, China

Supply Ability: 10 Tons per Month

Certificate: ISO9001

Product Description

tungsten wolfram electrodes for Welding

An Polished Pure Tungsten Bar electrode is an electrical conductor used to make contact with a nonmetallic part of a circuit (e.g. a semiconductor, an electrolyte or a vacuum). The word was coined by the scientist Michael Faraday from the Greek words elektron (meaning amber, from which the word electricity is derived) and hodos, a way.

Tungsten Electrodes for welding Chemical Composition

tungsten electrode for welding composition					Color mark
Grade	Dioxide	Dioxide in %	Impurities %	tungsten %	Color mark
WT10	ThO2	0.80-1.20	≤0.02	Remainder	Yellow
WT20	ThO2	1.70-2.20	≤0.02	Remainder	Red
WT30	ThO2	2.80-3.20	≤0.02	Remainder	Purple
WT40	ThO2	3.80-4.20	≤0.02	Remainder	Orange
WC20	CeO2	1.80-2.20	≤0.02	Remainder	Grey
WL10	La2o3	0.90-1.20	≤0.02	Remainder	Black
WL15	La2o3	1.40-1.60	≤0.02	Remainder	Gold
WL20	La2o3	1.90-2.10	≤0.02	Remainder	Blue
WZr3	ZrO2	0.15-0.50	≤0.02	Remainder	Brown
WZr8	ZrO2	0.70-0.90	≤0.02	Remainder	White
WP	-	-	≤0.02	99.8	Green
WY	YO2	1.80-2.20	≤0.02	Remainder	Sky blue
WS2	YO2	1.80-2.20	≤0.02	Remainder	Turquoise

Tungsten Electrodes for welding Size:

Diameter		Diameter tolerance	Length	Length tolerance
mm	inch	mm	mm	mm
1	1/25	(+/-)0.01	50,75,150,175	(+/-)1.0
1.2	6/125	(+/-)0.01	50,75,150,175	(+/-)1.0
1.6	1/16	(+/-)0.02	50,75,150,175	(+/-)1.0
2	2/25	(+/-)0.02	50,75,150,175	(+/-)1.0
2.4	3/32	(+/-)0.02	50,75,150,175	(+/-)1.0
3	3/25	(+/-)0.03	50,75,150,175	(+/-)1.0
3.2	1/8	(+/-)0.04	50,75,150,175	(+/-)1.0
4	5/32	(+/-)0.04	50,75,150,175	(+/-)1.0
4.8	3/16	(+/-)0.04	50,75,150,175	(+/-)1.0
5	1/5	(+/-)0.04	50,75,150,175	(+/-)1.0
6	15/64	(+/-)0.04	50,75,150,175	(+/-)1.0
6.4	1/4	(+/-)0.04	50,75,150,175	(+/-)1.0
8	5/16	(+/-)0.04	50,75,150,175	(+/-)1.0
10	2/5	(+/-)0.04	50,75,150,175	(+/-)1.0

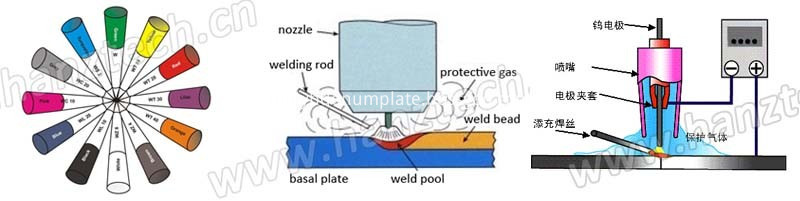

Tungsten Electrodes for welding Application

HTB1LafHMXXXXXb_XXXXq6xXFXXXa of tungsten wolfram electrodes

Tungsten Electrodes for welding Feature of tungsten wolfram electrodes

• Low electronic function

• Good conductivity

• Good electron emission ability

• Good mechanical cutting performance

• High elastic modulus, Low vapour pressure

• High recrystallization temperature
