vacuum evaporation coating pure Tungsten Molybdenum wire

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Kilogram
Delivery Time: 15 Days

Basic Info

Model No.: SYMT-titanium Wire-vacuum

Alloy: Titanium Wire

Application: Industrial, Medical

Technique: Forged

Grade: GR2

Shape: Round

Purity:>=99.9% Or 99.95%: Size:Dia0.25~3mm

Additional Info

Packaging: wooden case

Productivity: 1ton/month

Brand: SYMT

Transportation: Ocean,Land,Air

Place of Origin: Shaanxi, China

Supply Ability: 10 Tons per Month

Certificate: ISO9001

Product Description

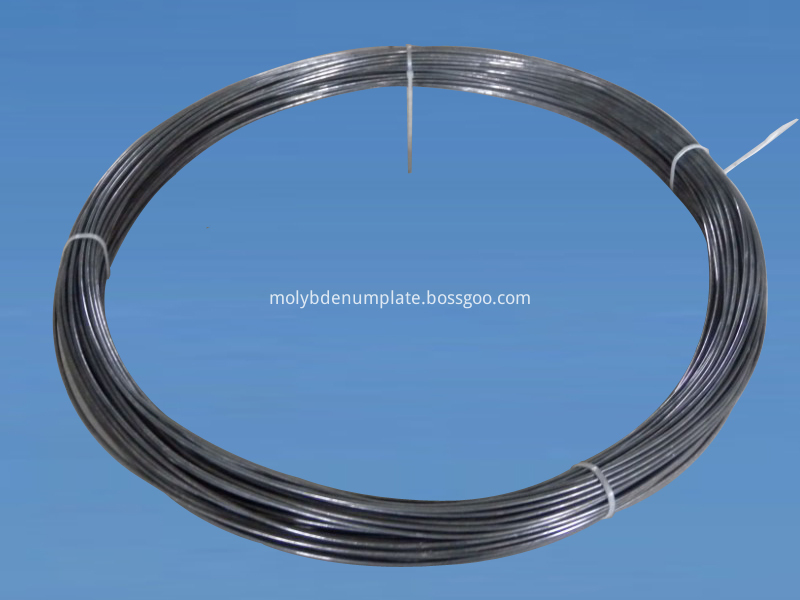

vacuum evaporation coating pure Tungsten  Molybdenum wire

Tungsten wire is drawn from forged tungsten rods. We have different form for tungsten wire like white tungsten wire, straightened tungsten wire, drawn tungsten wire, electrolytic polished tungsten wire, and annealed tungsten wire.

High temperature property: According to the specific applications, high temperature property requirements are categorized.
Diameter consistency: Weight deviation of two consecutive 200mm wire pieces is less than 0.5% of nominal value.

pure Tungsten Molybdenum wire Straightness
Regular tungsten wire: In accordance with customers` requirements.
Straightened tungsten wire: For the tungsten wire thinner than 100μm, vertical height of 500mm freely suspended wire should not be less than 450mm; For the tungsten wire at or thicker than 100μm, the maximum arc height between two pints with distance of 100mm is 10mm.

pure Tungsten Molybdenum wire Application


Tungsten heater(Tungsten evaporation coil)is of many metal shapes and generally consists of one or several streams of doped tungsten wires. By special heat treatment technology, tungsten heaters have the features of high melting point, high corrosion resistance, good stability and long service life.
They are applied in fields as thin film technology, metal evaporation, mirror processing, and picture tube industry.
Tungsten filaments (W filaments; wolfram filaments) are always used in lighting industry like incandescent/halogen lights and standardized lamp coils for fluorescent lights. We can offer thousands of filament designs with respect to parameters such as basic coil type (single coil or several coils), bulb shape, gas fill, service life and lumen output.

Vacuum Evaporator Coating titanium Wire

Vacuum Evaporator Coating titanium Wire


6. Package details:

First, packaging with moisture-proof paper
Second, packaging with kraft paper

Third, packaging with foam plastics in all side of plywood case.
Finally packing products in plywood case
7. Transportation:

Shipping goods by TNT, DHL, Fedex, UPS, EMS  etc.
Transport goods to Beijing or Shanghai air port by air transportation
