pure Titanium springs price

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 1 Kilogram
Delivery Time: 10 Days

Basic Info

Model No.: SYMT-Titanium springs

Application: Industrial, Medical

Technique: Cold Rolled

Grade: GR2

Shape: Hexagonal

Cold Coiled Diameter Max8mm: Heat Coiled Diameter Min8mm

Additional Info

Packaging: wooden case

Productivity: 1ton/month

Brand: SYMT

Transportation: Ocean,Land,Air

Place of Origin: Shaanxi, China

Supply Ability: 10 Tons per Month

Certificate: ISO9001

Product Description

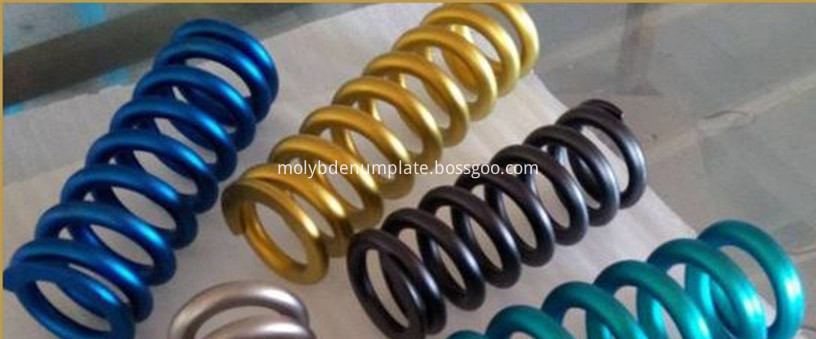

Titanium springs

We also provide different kinds of sizes which according to our client's requirements. The specialty of our products is our raw material are the best quality amoung different sellers around the world. You can contact us if you are interested and also want to have an test on our products.

99.95% Titanium Springs





Specifications:

1) Material: Titanium alloy

· Gr5,TC4(Ti-6Al-4V)

· TB5 Ti15333(Ti-15V-3Cr-3Sn-3Al),

· TB9,Ti38644(Ti-3Al-8V-6Cr-4Mo-4Zr)

· Timetal LCB(Ti-6.8Mo-4.5Fe-1.5Al)

· TA11(Ti-8Al-1Mo-1V)

2) Standard:

DIN 2096, EN13298,UIC 822,TB/T 1025, GB/T 23934, HB8292, JIS B2704, JB/T 10416,GB/T 1239.2



3) Production technology and wire diameter

· Cold Coiled: Diameter: ≤ 8mm

· Heat Coiled: Diameter: > 8mm

4) Special features of titanium springs

· Low density, High specific strength, excellent corrosion resistance, Rustless.

· Better Anti-fatigue performance, Good heat treatment performance, Lower Elastic modulus.

· Higher strength-to-weight ratic, Higher Elastic Limit, Higher Fatigue limit, Higher impact toughness and  Higher resonant frequency.

The comparison of Mechanical Property between Titanium and Steel

Mechanical Property

TC4

Ti15333

Ti38644

Timetal LCB

Steel

Tensile strength

895 ~965

950~1000

1350~1450

1400~1600

833~1070

Yield strength

825~875

850~965

1050~1150

1100~1200

833~1070

Elongation

15

7

27

27

12

Reduction of area

47

25

63

64

55

Density

4.42g/cm3

4.71g/cm3

4.75g/cm3

4.82g/cm3

7.83g/cm3



5) Why we choose Titanium Springs

Because of the special features of titanium, the titanium springs can be designed with smaller diameter, less coils than the steel springs during Practical application.

For example:

Comparison of Steel and Titanium springs

Item

Steel springs

Titanium springs

Stiffness /N.mm-1

61.25

61.25

Free Length/mm

426

426

Inner Diameter/mm

102

102

Vibration load/N

13642

13642

Vibration stress/MPa

1031

872

Wire Diameter/mm

16.95

18.00

Active Coils

7.90

4.97

Total Coils

9.09

6.16

Weight/kg

5.92

2.86

Reducing Weight/%

0

52

Density/g.cm3

7.83

4.82

Shear Modulus/GPa

79.2

40.0

From the form you can see that the titanium can reduce much more weight.

The steel springs will have to be longer and with larger diameter.

But the titanium can resolve this problem for you.



6) Types of titanium springs

Train springs, The high voltage switch spring, Elevator spring, Automotive suspension spring, tension spring, Compression spring, Torsion spring, Disc Spring, Vortex coil spring, Wave spring , Plate spring,etc.
